Accurate Absolute Gauge Water Liquids Tank Compact OEM Piezoresistive Pressure Sensor MPM283
Features:
1. Compact size
2. For flow media
3. Full stainless steel 316L
4. Constant current/voltage power supply
Applications:
1. Industrial process control
2. Level measurement
3. Gas, liquid
4. Pressure calibration
5. Liquid pressure system
6. Switches
Electric Performance:
1. Power supply:≤ 2.0mADC; ≤10V DC
2. Input impedance: 3kΩ ~8kΩ
3. Output impedance: 3.5kΩ ~6kΩ
Basic Specifications:
| Specification* | Min. | Typ. | Max. | Units |
| Non-Linearity ** | ±0.2 | ±0.25 | %FS,BFSL | |
| Repeatability | ±0.05 | ±0.075 | %FS | |
| Hysteresis | ±0.05 | ±0.075 | %FS | |
| Zero output | ±3 | mVDC | ||
| FS output | 70 | mVDC | ||
| Zero thermal error | ±0.75 | ±1.0 | %FS, @35ºC | |
| Span thermal error | ±0.75 | ±1.0 | %FS, @35ºC | |
| Compensated temp. range | -10~80 | ºC | ||
| Working temp. range | -40~125 | ºC | ||
| Storage temp. range | -40~125 | ºC | ||
| Stability | ±0.1 | ±0.2 | %FS/year | |
| * testing at basic condition ** 100MPa pressure sensor's non-linearity: typ. ±0.30, max. ±0.35(units ±%FS,BFSL) | ||||
Outline Construction:
(Unit:mm)
Electric Connection:
Order Information:
| MPM283 | Piezoresistive OEM Pressure Sensor | |||||||||||||
| Code | Assembling type | |||||||||||||
| I | with cap Φ16.8 mm | |||||||||||||
| II | Φ12.6×10.5 mm | |||||||||||||
| Range code | Pressure range | Pressure type | ||||||||||||
| 09 | 0~700kPa | G.A | ||||||||||||
| 10 | 0~1000kPa | G.A | ||||||||||||
| 12 | 0~2MPa | G.A | ||||||||||||
| 13 | 0~3.5MPa | G.S.A | ||||||||||||
| 14 | 0~7MPa | S | ||||||||||||
| 15 | 0~10MPa | S | ||||||||||||
| 17 | 0~20MPa | S | ||||||||||||
| 18 | 0~35MPa | S | ||||||||||||
| 19 | 0~70MPa | S | ||||||||||||
| 20 | 0~100MPa | S | ||||||||||||
| Code | Pressure type | |||||||||||||
| G | Gauge | |||||||||||||
| A | Absolute | |||||||||||||
| S | Sealed gauge | |||||||||||||
| Code | Temperature compensated type | |||||||||||||
| L | With lasar trimming compensated circuit borard (only for MPM283 I ) | |||||||||||||
| M | Compensated by outer resistors | |||||||||||||
| Code | Electric connection | |||||||||||||
| 1 | Kovar pin(default) | |||||||||||||
| 2* | flexible wire, default length:100mm | |||||||||||||
| | ||||||||||||||
| MPM283 II 17 S M 2 the whole spec | ||||||||||||||
Certificates We Have

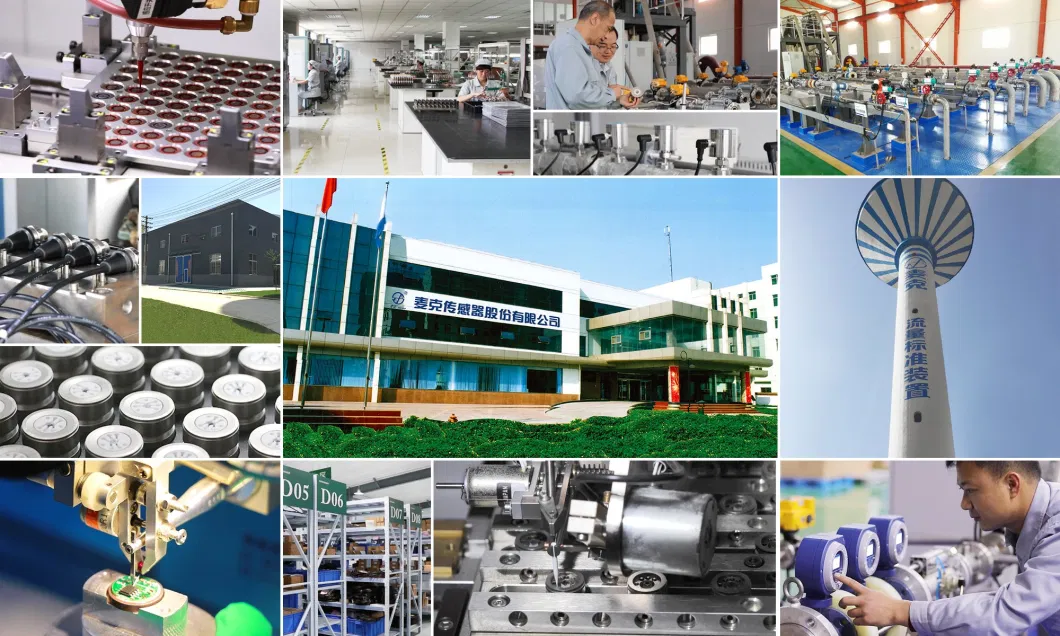

Company Overview
