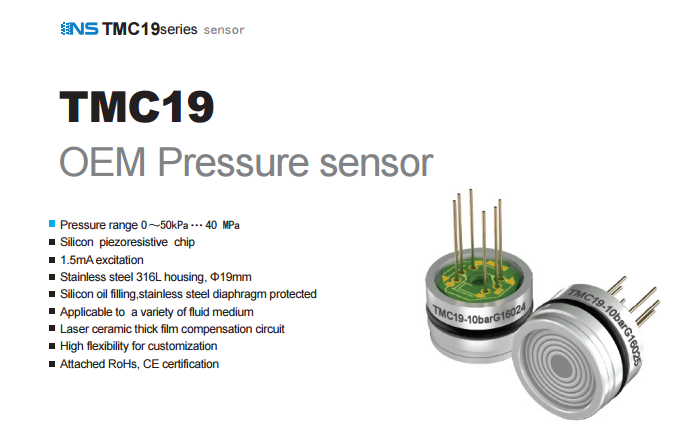

|Place of Origin||Shanghai, China||Brand Name||NS||Model Number||NS-TMC19|
|Type of Sensor||Diffusion silicon sensor||Pressure Range||0~400 Bar||Output Signal||70mV(typ.)|
|Accuracy||±0.25% F.S(typ.)||Electrical Connection||Kovar Pin, Silicon Rubber wire||Mechanical Connection||O-ring sealed|
|Power Supply||5 Vdc (Idd=1.5mA)||Operational Mode||Absolute, Gauge, Sealed Gauge||Measuring Medium||Water,Fuel or Liquid Gas pressure|
|Material||Stainless Steel 316L||Certificate||Obtain RoHs,CE, ISO9001 certification||Lead Time||2~3 weeks|
Why you choose and trust TM Sensor?
You benefits from:
♦ Our P&D Laboratories: We have two P&D laboratories in China to develop products under the severe environment, we can conduct in-depth performance and cost-effective products development by the P&D labs.
♦ Factory Experience : More than 16 years of experience in manufacturing sensor.
♦ Supply Ability : At least 112,500 pcs sensor product per Month.
♦ Supply Area : All over the world, about 70 countries.
♦ Primary Customers : TYCO, Honeywell, Carrier, DAIKIN, LG, and SANY GROUP.
♦ Certificate : CE, RoHs, ISO9001.
♦ OEM/ODM : Accept, we are able to offer a total solution for your industrial monitoring system.
Maintenace and After-Service:
♦ Prompt response upon customer's feedback within 24 hours: A/S engineer team will be one-on-one service for you to exclude obstacles during using sensors.
♦ 12 months' warranty period: free sensor maintenance, except artificial damage, we guarantee bear all the freight back and forth.
♦ Product maintenance: TM guarantee maintenance the whole life of the sensors.
How to order:
♦ In order to recommend you the most suitable sensor and make an accurate
quotation,please provide the following information and send it to our sales when you are going to make an inquiry,
for example, now you want to buy a pressure sensor, you already have specification for
(1) Measurement Range: 10 Bar
(2) Operation Mode: Absolute
Check with our below ordering model guide, you have the model NS-TMC19-10BarA.
send us this code, you will be received price and lead time instantly.
For more information, please refer to our website: tmsensor.en.made-in-china.com or contact me.
